Integration in Mobile App

Integration Steps

Integration in Mobile App

11/03/2022 2023-04-27 16:11

Step 1 - Initiate payment

In this step we will initiate a payment.

  • Sandbox URL : https://sandbox.paymee.tn/api/v2/payments/create
  • Live URL : https://app.paymee.tn/api/v2/payments/create
  • Request method : POST

Header

Input

  • amount: Payment amount (required)
  • note: Note about the payment (required)
  • first_name: Buyer’s first name (required)
  • last_name: Buyer’s first name (required)
  • email:  Buyer’s e-mail (required)
  • phone: Buyer’s phone number (required)
  • return_url: The URL to which the user is redirected after finishing payment (optional)
  • cancel_url: The URL to which the user is redirected after canceling payment (optional)
  • webhook_url: The URL to which Paymee sends the payment status (required)
  • order_id: The order ID at the merchant’s side (optional)

					{
    "amount": 220.25,
    "note": "Order #123",
    "first_name": "John",
    "last_name": "Doe",
    "email": "test@paymee.tn",
    "phone": "+21611222333",
    "return_url": "https://www.return_url.tn",
    "cancel_url": "https://www.cancel_url.tn",
    "webhook_url": "https://www.webhook_url.tn",
    "order_id": "244557"
}



Output

We will use the payment_url in the next step.


					{
   "status": true,
   "message": "Success",
   "code": 50,
   "data": {
            "token": "dfe54df34b54df3a854f3a53fc85a",
            "order_id": "244557",
            "first_name": "John",
            "last_name": "Doe",
            "email": "test@paymee.tn",
            "phone": "+21611222333",
            "note": "Order #123",
            "amount": 220.25,
            "payment_url": "https://sandbox.paymee.tn/gateway/dfe54df34b54df3a854f3a53fc85a"
   }
}



Step 2 - Open a webview

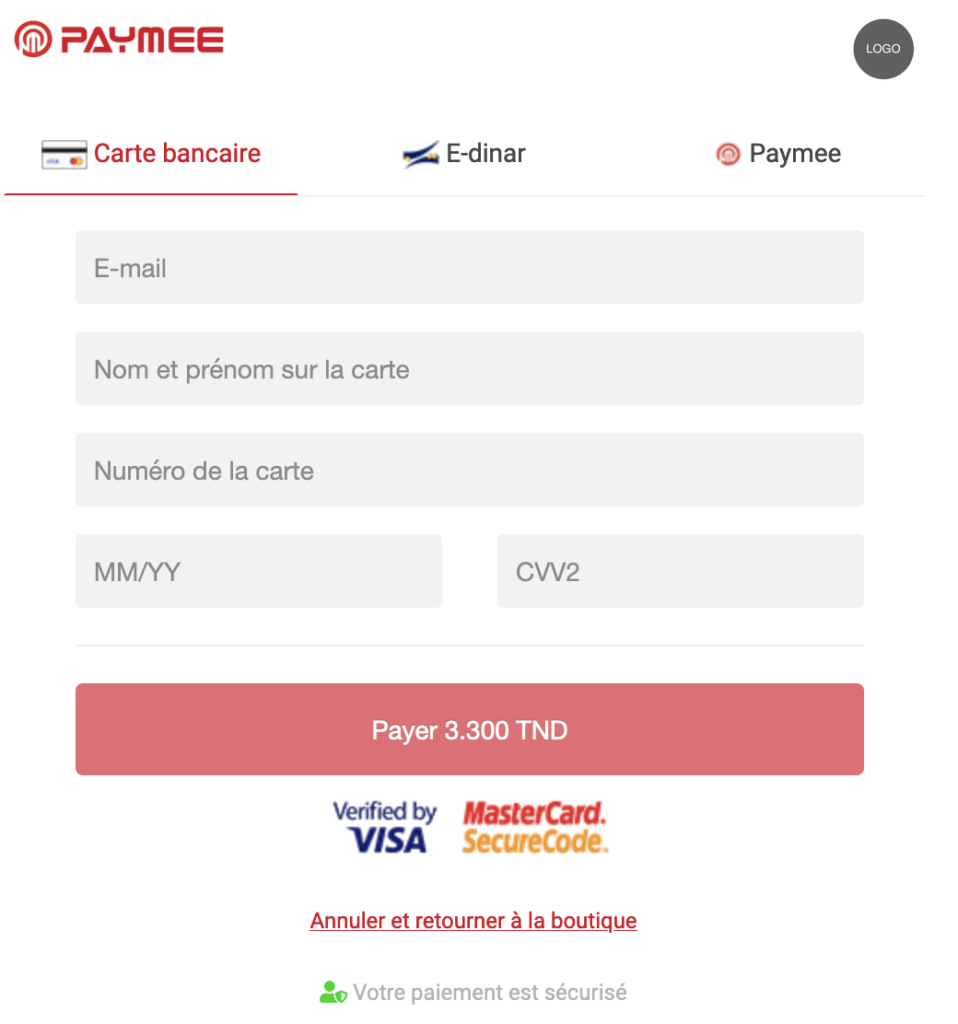

In this step we will load the Paymee gateway in an iframe. The iframe’s src contains the token as shown below :

Le module en Sandbox affiche le paiement par compte Paymee, seulement, pour effectuer les tests.
Le paiement par carte bancaire sera activé en Production.

Test account :

  • Phone: 11111111
  • Password: 11111111

Once the payment process is done the webview will show the URL “/loader” which contains a loader animation.
When the URL of the webview contains “/loader”, hide the webview and go to Step 3

Step 3 - Check payment

At this Step, Paymee has sent the payment status to your webhook_url.

Your return_url  verifies the payment_status and processes the order accordingly.

To check the integrity of the response, use check_sum.

check_sum is built as follows: md5(token+payment_status(1 or 0)+API Token)



Data sent to the webhook_url when payment is successful


					{
    "token": "dfe54df34b54df3a854f3a53fc85a",
    "check_sum": "14efe54d8664f34543a854f3a5213fc85a",
    "payment_status": True,
    "order_id": "244557",
    "first_name": "John",
    "last_name": "Doe",
    "email": "test@paymee.tn",
    "phone": "+21611222333",
    "note": "Order #123",
    "amount": 220.25,
    "transaction_id": 5578,
    "received_amount": 210.25,
    "cost": 10
}




Data sent to the webhook_url when payment fails


					{
    "token": "dfe54df34b54df3a854f3a53fc85a",
    "check_sum": "14efe54d8664f34543a854f3a5213fc85a",
    "payment_status": False,
    "order_id": "244557",
    "first_name": "John",
    "last_name": "Doe",
    "email": "test@paymee.tn",
    "phone": "+21611222333",
    "note": "Order #123",
    "amount": 220.25
}
